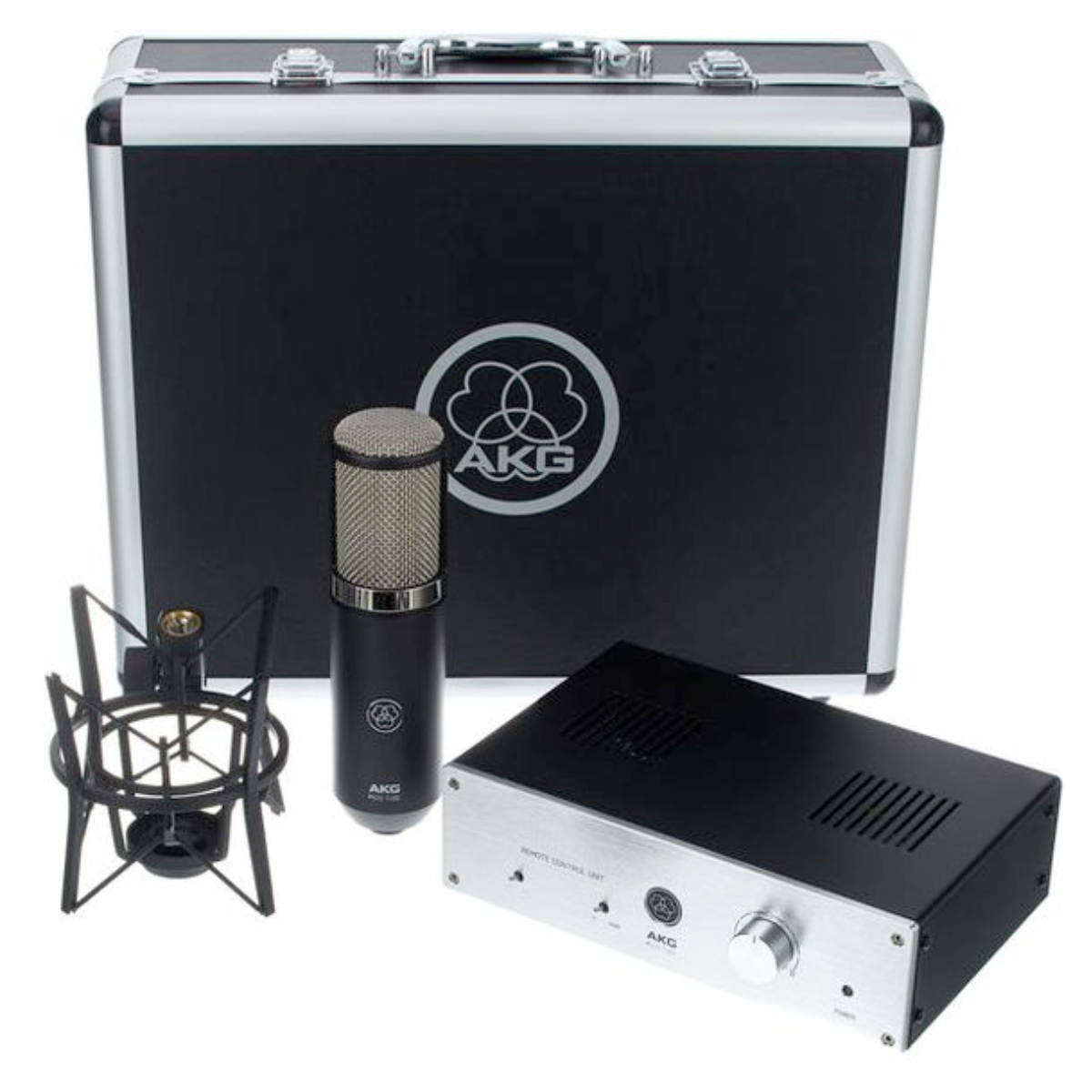

AKG P820 Multi-Pattern Tube Condenser Microphone

The P820 Tube is a high-performance multi-pattern tube microphone that excels in capturing lead vocals. brass instruments. electric guitars. and drums. It is designed to provide a genuine tube sound with its dual one-inch diaphragm capsule and advanced ECC83 dual-triode circuitry. As an affordable tube microphone. the P820 Tube sets a new standard in its class by delivering exceptional audio quality and performance.

With its versatile multi-pattern capability. the P820 Tube allows you to select different polar patterns such as cardioid. omni-directional. and figure-eight. providing flexibility in capturing sound from various sources and environments. This makes it a versatile tool for recording studios. live performances. and professional audio applications.

General Specifications

Audio frequency bandwidth 20 – 20000 Hz

Equivalent noise level 16 dB-A

Sensitivity 20 mV/Pa

Signal to Noise 78 dB-A

Preattenuation Pad -20 dB

Bass cut filter 80 – 12 dB/octave (selectable on remote control unit)

Electrical impedance <= 200 Ohms

Recommended load impedance >= 1000 Ohms

Polar Pattern Cardioid. Omnidirectional. Figure of eight (plus six intermediate patterns)

Dimensions

Length 212 mm

Diameter 54 mm

Net Weight 765 g

Audio Output

Type Balanced XLR

Gender Male

Contacts 3-pin

Powering Interface

Powering 210-240 VAC or 110-120 VAC (selectable)

Primary Fuse 125 mA/250 V slow-blow

Application

Project Studio Yes

Instrument

Vocals Yes

Horns / Woodwinds Yes
