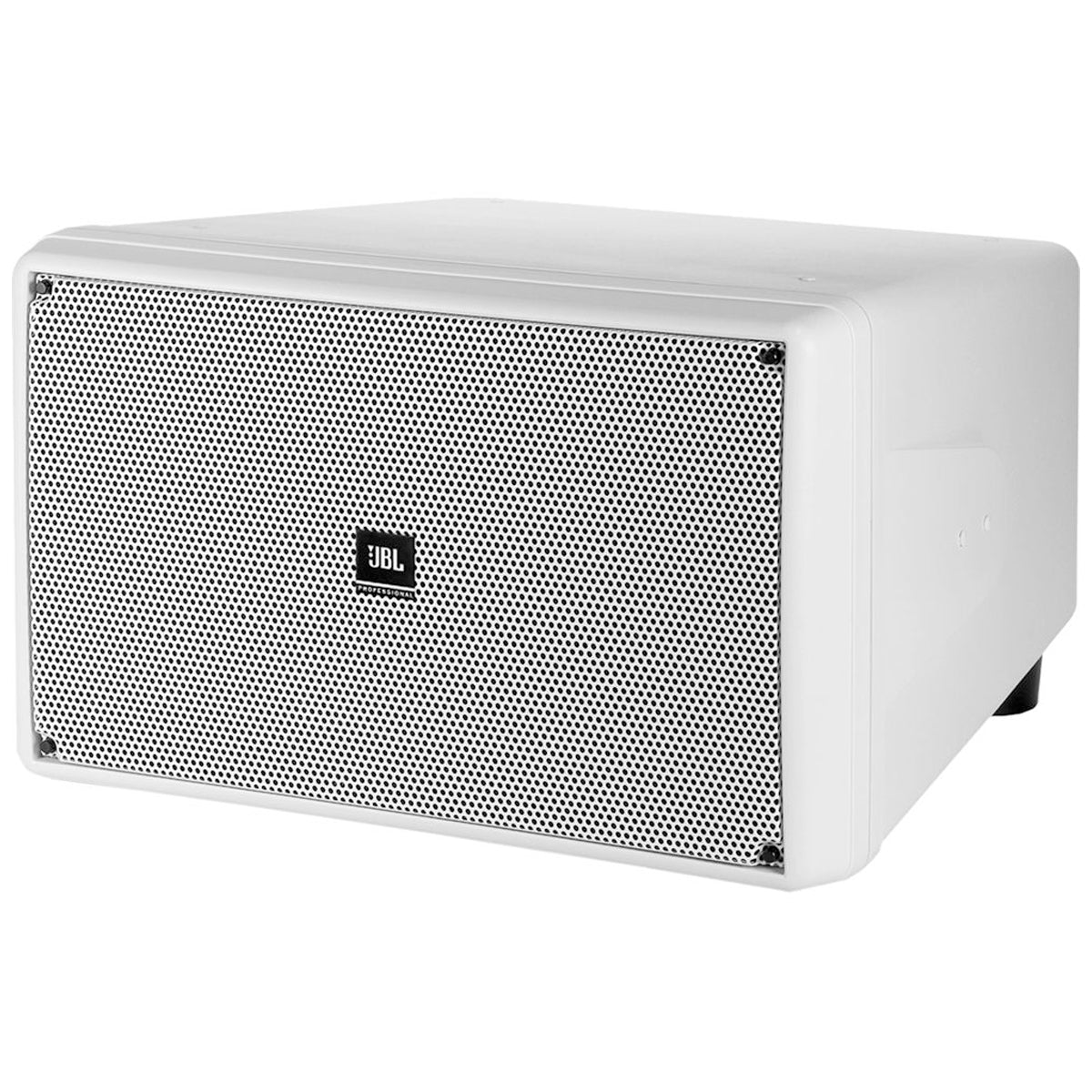

JBL Control SB2210 10 Subwoofer White

The Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size. high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market

    2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers

    500 Watts Power handling

    Frequency Response Down to 38 Hz

    13 x M6 Insert Points Including Inserts for Optional U-Bracket

    Compact. Low Profile Design



Frequency Range (-10dB)       38 Hz – 500 Hz

Frequency Response (-3 dB)   48 Hz – 95 Hz

Power Rating 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)

Maximum Input Voltage         60.0VRMS (2 hrs). 120V peak

Sensitivity        95 dB. 1W @ 1m in half-space (2π loading. average 50 – 90 Hz)

Maximum SPL (1m)     122 dB in half-space (2π loading)

Impedance      8Ω

Minimum Impedance 7.2Ω at 160 Hz

Recommended Filter 45 Hz. 24 dB/oct high-pass filter

Drivers             Two 250 mm (10 inch) diameter LF drivers. long-excursion design. woven fiberglass cone. highly damped butyl rubber surround. linear suspension spider . high temperature anodized aluminum voice coil former. high-temp voice coil wire and coil adhesive. FEA optimized motor construction. aluminum conductive ring.

Enclosure        High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold. painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.

Grille   Thermoset composite coated steel. zinc-plated. 3-layer foam backing.

Outdoor Capability     IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity. salt spray. temperature & UV. Passes Mil-STd-202F for salt spray.

Input Connectors        Screw-down terminal strip. zinc plated copper base. nickel-plated metal screws/washers. Accepts up to 9 mm outside. 4 mm inside open lug (#6. #8 or #10 lug). plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.

Safety Agency ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.

Colors Black or white (-WH)

Dimensions (H x W x D)          355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)

Net Weight (each)      23.31 kg (51.4 lb)

Shipping Weight         25.85 kg (57.0 lb)

Included Accessories 1 pc MTC-PC2 input panel cover. 4 pcs floor standing feet 4 pcs beveled washers.

Optional Accessories MTC-210UB (&-WH) U-BracketMTC-SBT300 70V/100V Transformer. 300W multi-tap. installs onto inside of back input panel using included 4 studs.Transformer Taps:70V: 300W. 150W. 75W. 38W100V: 300W. 150W. 75W

Mounting Hardware   Optional U-bracket. insert points on top & bottom.
