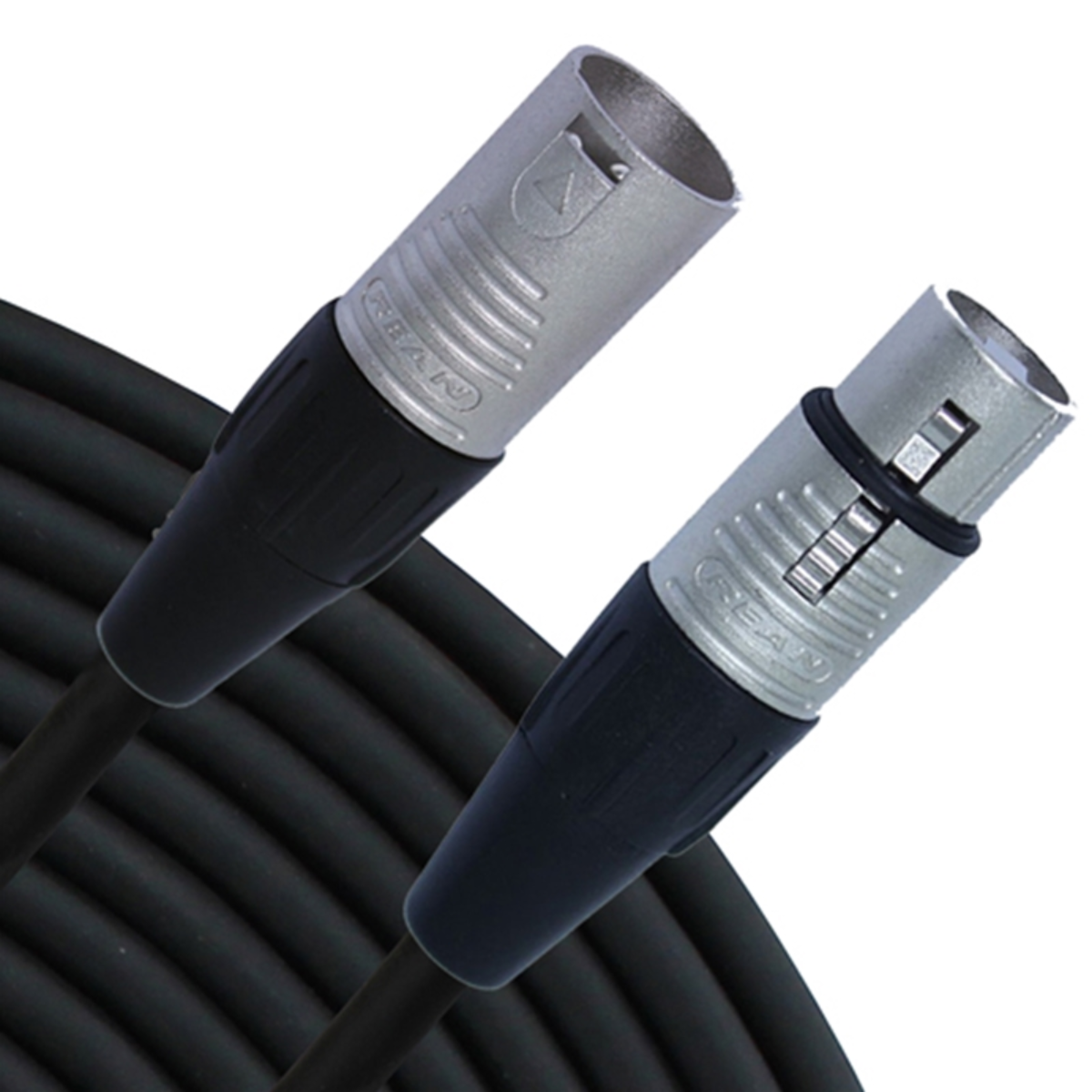

Rapco RM1-100 Microphone Cable (100ft)

The RapcoHorizon RM1 series MIC1 100 ft XLR Male to XLR Female microphone cable is designed for professional audio applications.

    (2) 24 gauge center conductors for reliable signal transmission.

    Utilizes a serve shield process for quiet operation. providing maximum flexibility.

    Matte PVC jacket material is durable. flexible. and has low memory characteristics.

    Pure copper conductor and shield ensure high-quality signal transfer.

    Standard RapcoHorizon connectors included. with options for other connector types.

    Individually tested for performance and quality assurance.

Specifications:

    Cable: MIC1

    Conductor Gauge: (2) 24 gauge

    Shield: Bare annealed copper serve

    Shield Coverage: 95%

    Jacket: Matte PVC

    Outer Diameter (O.D.): 0.230

    Capacitance: 21 pF/ft. @ 1 kHz

    Cond.-Shield Capacitance: 37 pF/ft. @ 1 kHz

    Characteristic Impedance: 70 Ohms NOMINAL

    DC Resistance @ 20°C: 23 Ohms/1000 feet

These specifications ensure that the RapcoHorizon RM1-100 microphone cable delivers clean. noise-free transmission of audio signals over its 100-foot length. It’s suitable for professional audio environments such as live performances. recording studios. and other applications where reliable and durable audio cables are necessary.
