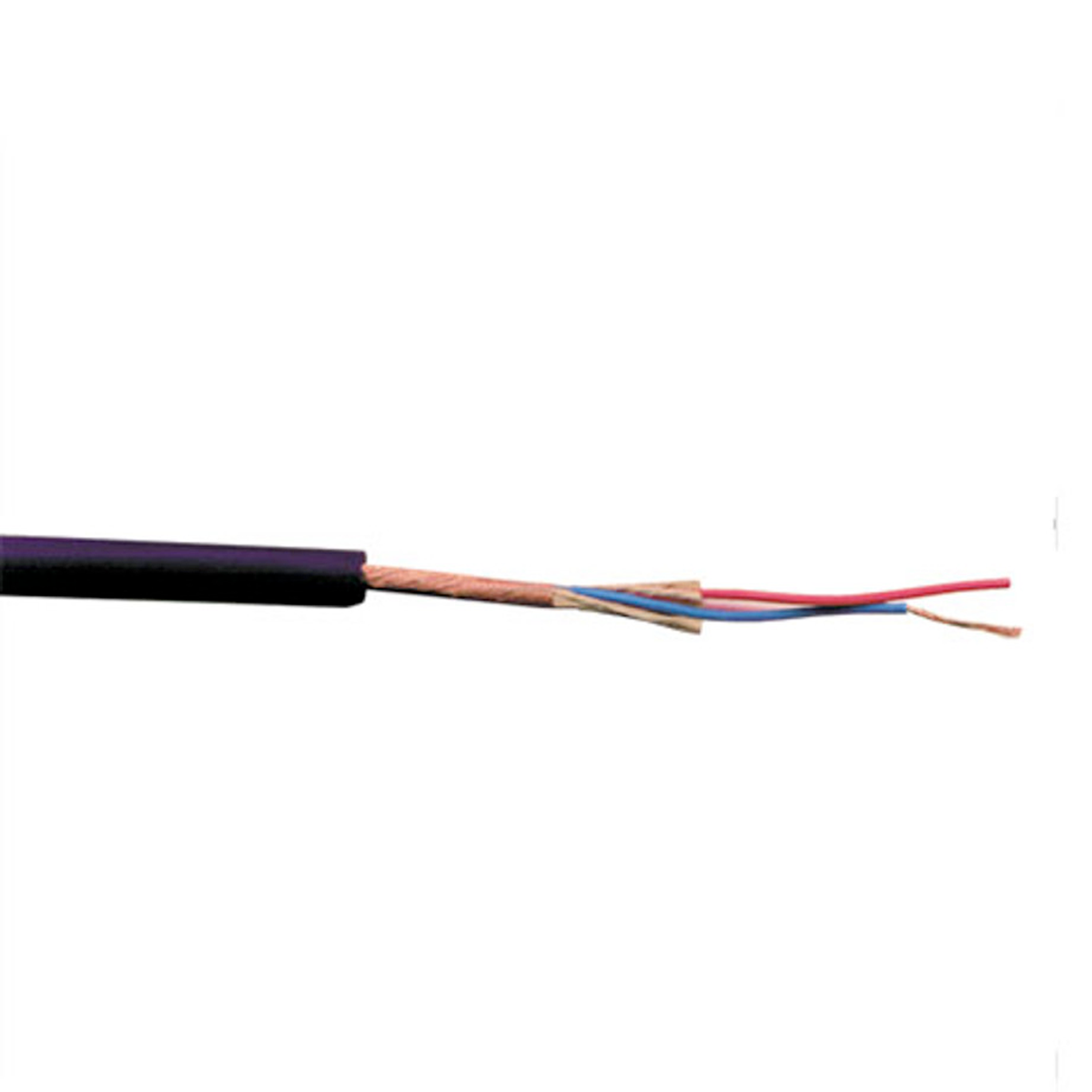

RapcoHorizon MIC1.K 24 AWG Microphone Cable (per ft.)

Description: 2 conductors 24 AWG stranded bare copper. polypropylene insulated.

overall serve shielded. PVC jacketed microphone cable

VTG Part Number: MIC1

1. Conductor

1.1 AWG Size and Stranding: 24 AWG 16 strands 36 AWG

1.2 Material: Bare annealed copper

2. Insulation

2.1 Material: Polypropylene

2.2 Wall Thickness: .013 nominal

2.3 Diameter: .050 +/- .002

3. Color Code

3.1 Code: Blue paired with red

4. Assembly

4.1 Lay Length: 1 3/4 maximum left hand

4.2 Fillers: Jute as required

5. Shield

5.1 Material: Bare annealed copper serve

5.2 Coverage: 95% nominal

6. Jacket

6.1 Material: Matte finish polyvinyl chloride. color as specified

6.2 Colors: Black. blue. green. purple. red white. and neon blue. green. orange.

pink and yellow

6.3 Wall Thickness: .055 nominal

6.4 Diameter: .230 +/- .005

7. Markings

7.1 Type: Surface printing in white ink(blue on white jacket)

7.2 Legend: VTG AUDIO LOW NOISE – BALANCED MICROPHONE

CABLE. MADE IN USA

VTG AUDIO NEON BRITES BALANCED CABLE MADE IN USA

8. Electrical Specifications

8.1 Capacitance Between Conductors: 21 pF/ft @ 1 kHz

8.2 Capacitance Conductor to Shield: 37 pF/ft @ 1 kHz

8.3 Characteristic Impedance: 70 ohms @ 1 MHz

8.4 Resistance at 20C: 23 ohms/1000 ft.

Dr. No.: 0712A-01

By: TRM

Date: 09/02/97
