For Singers and Presenters
2-channel wireless system for singers and presenters. Stable UHF band. built-in antennas and streamlined interface with great live sound.

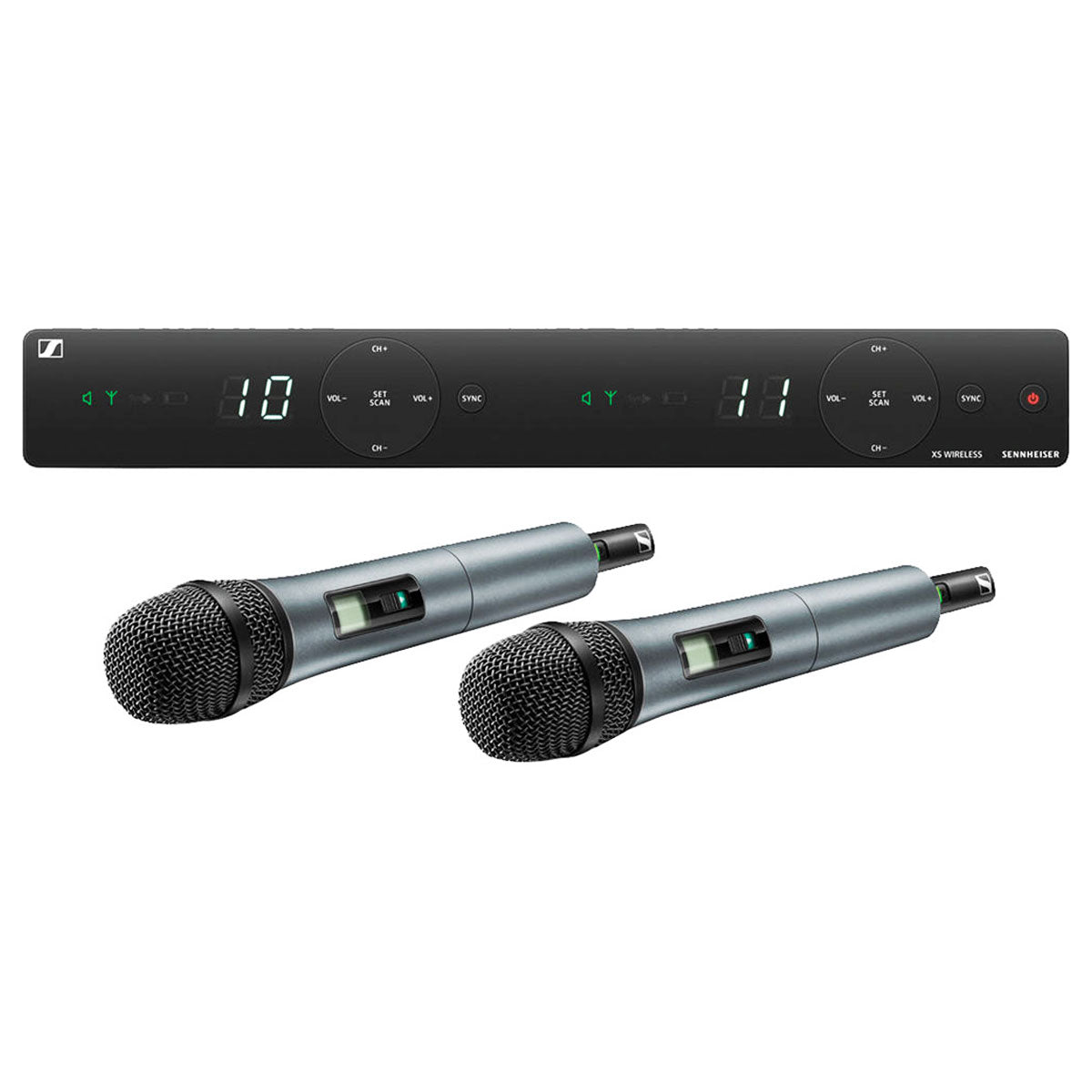

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind. these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and a streamlined interface from Sennheiser’s popular XS Wireless 1 series.
– Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
– Antenna-switching 2-channel diversity reception
– Integrated antennas
– Automatic frequency management and synchronization via remote channel for easy setup
– Selectable UHF frequencies within a large bandwidth
– Up to 10 compatible channels
Frequency range
548-572 MHz
Dimensions
Ø 48 x L 180 mm
Connector
XLR-3
Frequency response
55 – 16.000 Hz
THD. total harmonic distortion
≤ 0.9%
Transducer principle
dynamic
Weight
330 g (0.73 lbs)
Pick-up pattern
cardioid
Nominal impedance
300 Ω (at 1 kHz)
Min. terminating impedance
1 kΩ
Storage temperature
–20°C to +70°C
Operating temperature
0°C to +40°C
Signal-to-noise ratio
≥ 103 dBA
Switching bandwidth
Up to 24 MHz
Modulation
Wideband FM
Frequency
80 factory presets (8 banks of 10 channels each)
Sensitivity
1.8 mV/Pa (free field. no load at 1 kHz)
Synchronization
Transmitter: 2.4 GHz. low power OQPSK (only active during synchronization)
Temperature Range
0 °C … +40 °C (+32 °F … +104 °F)
