Raise your voice

Easy to use all-in-one wireless system for singers and presenters. Rely on a solid transmission with up to 10 compatible channels in a stable UHF band

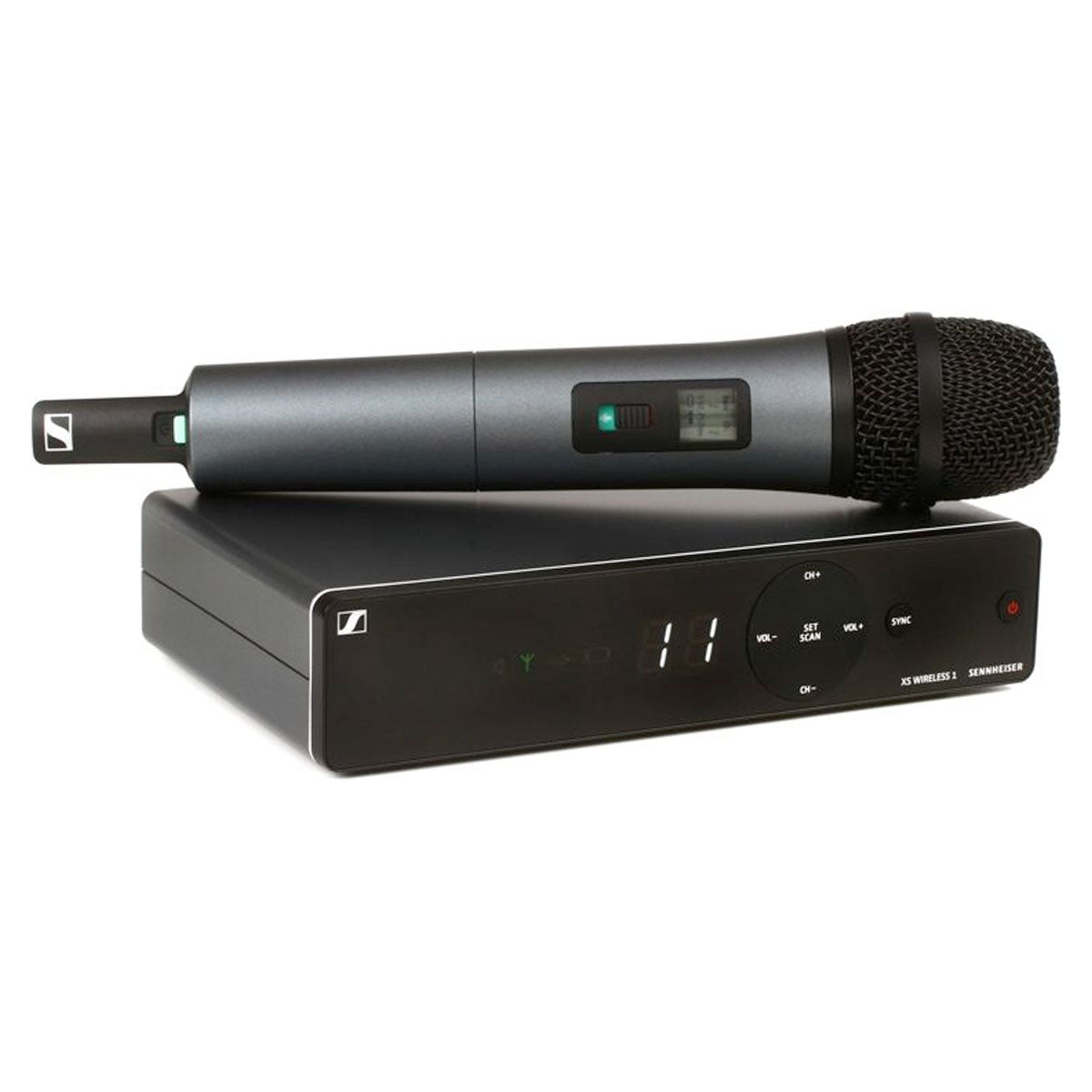

Go for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy-to-use all-in-one wireless system for singers and presenters. excellent for live sound featuring Sennheiser’s renowned evolution microphone capsule.

– Antenna-switching diversity reception

– Integrated antennas

– Automatic frequency management and synchronization via remote channel for easy setup

– Selectable UHF frequencies within a large bandwidth

– Up to 10 compatible channels

    Dimensions

        approx. 200 x 42 x 127 mm



    THD. total harmonic distortion

        ≤ 0.9%



    Pick-up pattern

        cardioid



    Signal-to-noise ratio

        ≥ 103 dBA



    RF output power

        10 mW



    Switching bandwidth

        up to 24 MHz



    Operating time

        approx. 10 hrs



    Modulation

        wideband FM



    Output voltage

        1/4 (6.3 mm) jack socket (unbalanced): +6 dBu. XLR socket (balanced): +12 dBu



    Housing

        rugged ABS housing



    Dynamic range

        dynamic



    Frequency

        8 frequency banks. each with up to 10 factory-preset channels



    Frequency range

        A: 548-572 MHz. GB: 606-630 MHz

        B: 614-638 MHz

        C: 766-790 MHz

        D: 794-806 MHz

        E: 821-832 MHz. 863-865 MHz

        K: 925-937.5 MHz



    Sensitivity

        < 3 μV at 52 dB(A)rms S/N



    Squelch

        adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)



    Synchronization

        2.4 GHz. Low Power OQPSK (only active during synchronization)



    Input sensitivity

        1.5 mV / Pa



    Adjustment Range Transmitter

        0 to -30 dB. adjustable in 10 dB steps



    Audio adjustment range

        45 dB. adjustable in 5-dB steps



    Line / Mic level

        20 dB. switchable



    Temperature Range

        operation: 0°C to +40°C. storage: –20°C to +70°C



    Receiver Principle

        double superheterodyne



    Diversity principle

        Antenna switching diversity via internal antennas
